PRODUCTS DESCRIPTION

This smart LED Linear light is equipped with two sensing modes: daylight sensor and microwave motion sensor. It can be connected to a network and controlled via mobile phone or computer. Each sensor can interact and work together with other sensors. The sensing function requires no additional wiring. For construction projects with long installation time, large workload, high demand for luminaires, and the need to save energy and reduce costs, this product would be a better choice.

Additionally, the daylight and microwave sensing features may qualify for government subsidies in certain countries. In some regions, using one controller to manage 10 or even 50 lights will significantly reduce costs.

This product is widely used in various settings such as high-end office buildings, schools, hospitals, exhibition halls, airports, supermarkets, and department stores

FEATURES

ZigBee mesh network smart controls, Automatic ON/OFF or Dimming Functions with smart sensing (Daylight, Motion) for maximum energy saving
Default with Constant Daylight and Motion sensors
Easy Grouping without Gateway via Smart Remote Control
Color Temperature options with 4000K, 5000K, 5700K or 6500K, and Power Field available with power between 20W, 36W and 40W
120lm/W, 50% less power consumption than traditional light sources
Save more on electricity bills, yet with the lowest maintenance cost.

Products Series

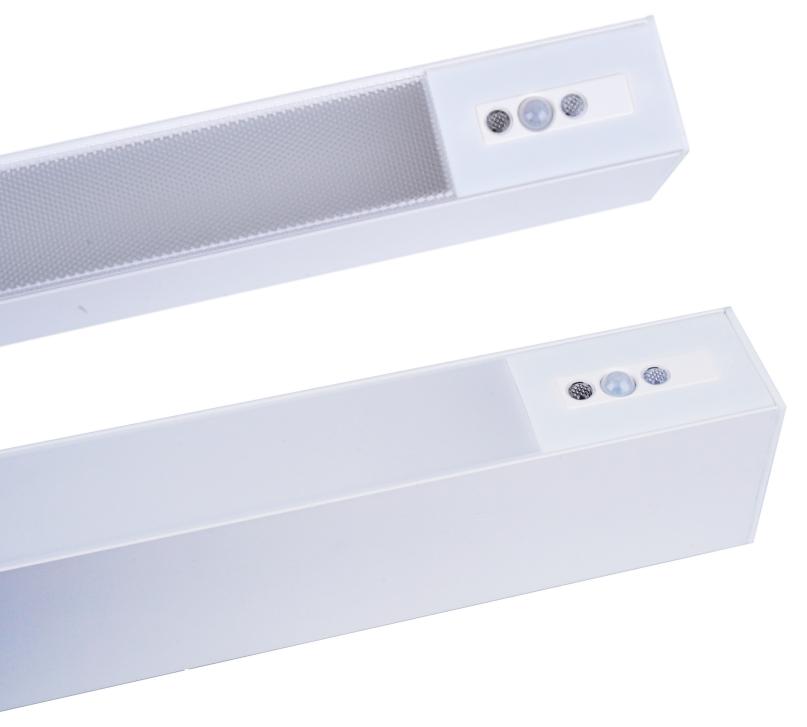

Smart LED Linear Light 20W36W40W

HSTD-SPL-20W

Power:20W

Input:AC200-240V,50/60Hz

IP Grate:IP40

CCT/Ra:4000~6500K  / >80

Lumen:2400LM

Angle:70°

Size:600*50*70mm

Control System:Zigbee

DATA SHEET Catalogue
Smart LED Linear Light 20W36W40W

HSTD-SPL-36W

Power:36W

Input:AC200-240V,50/60Hz

IP Grate:IP40

CCT/Ra:4000~6500K  / >80

Lumen:4320LM

Angle:70°

Size:1000*50*70mm

Control System:Zigbee

DATA SHEET Catalogue
Smart LED Linear Light 20W36W40W

HSTD-SPL-40W

Power:40W

Input:AC200-240V,50/60Hz

IP Grate:IP40

CCT/Ra:4000~6500K  / >80

Lumen:4800LM

Angle:70°

Size:1200*50*70mm

Control System:Zigbee

DATA SHEET Catalogue
